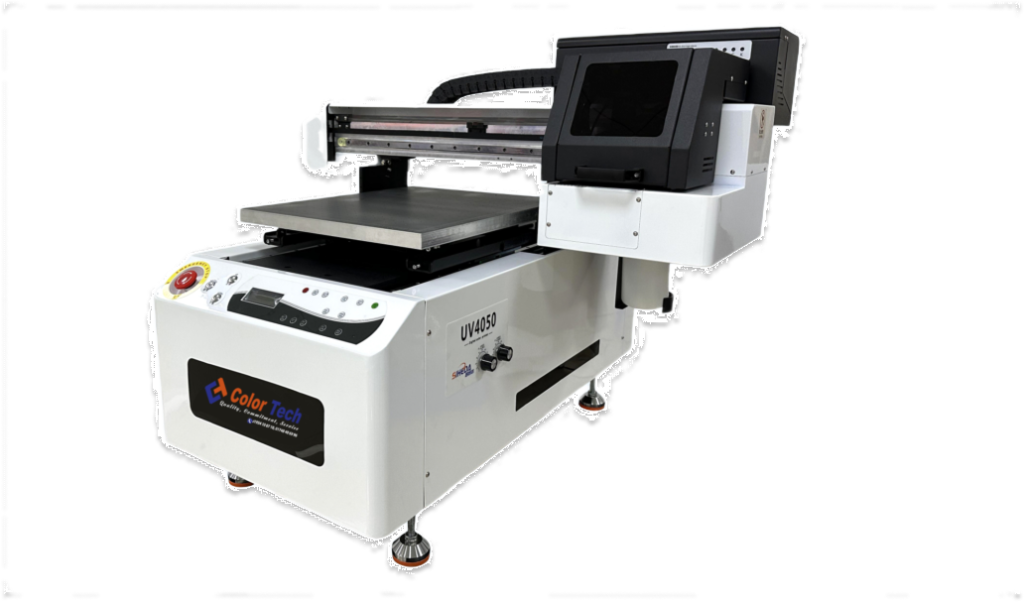

UV FLATBED PRINTER
6090J
Applications
Phone Case
.
Mug
.
Notepad
.
Gift wrap
.
Metal Plate
.
Boot
.
Signage
.
Medal Certificate
.
Show In Details

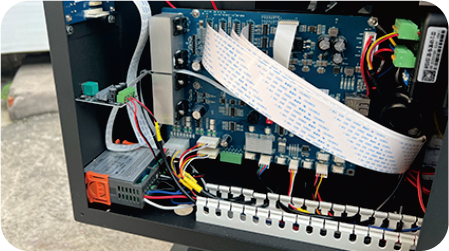

HOSON Board
The domestic high-end board system has good stability, low failure rate and durability

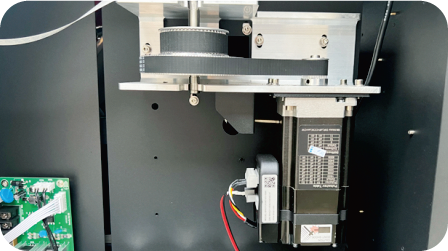

Servo Motor
High-quality servo industrial motor drive system ensures the accuracy and stability of equipment printing.

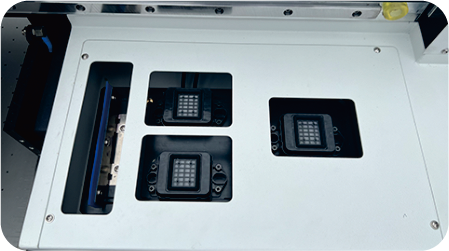

Ink Stack
Lifting aluminum alloy ink stacker, intelligent automatic cleaning and maintenance nozzle.

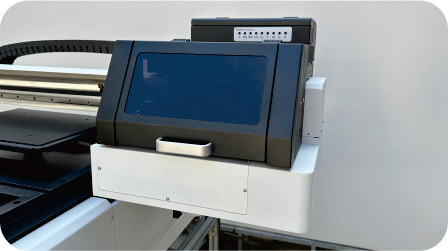

Trolley
Aluminum alloy thickened integrated lifting trolley frame, The trolley can be lifted and lowered as a whole, which is convenient to use.

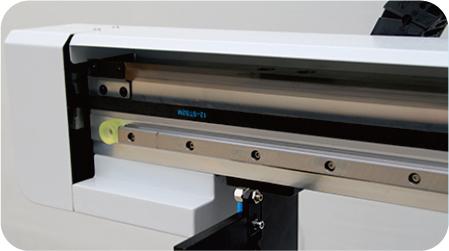

Imported Rails
The imported HIWIN silent linear guide rail is adopted to ensure the high-precision and smooth operation of the equipment and longer service life.

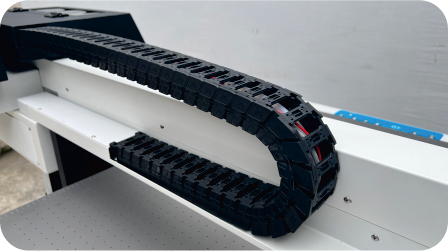

Tank Chain
The use of high-quality tank chains greatly increases the service life.

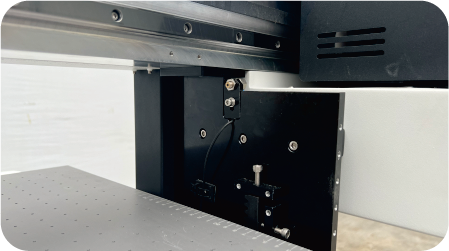

Automatic Height Measurement
One-touch automatic height detection and automatic height adjustment to prevent damage to the nozzle.
Ink shortage Alarm and White Ink Mixing System
The while ink automatic mixing system avoids the occurrence of precipitation and nozzle blockage when the white ink in not used for a long time, and effectively protects the nozzle while saving the cost of white ink control.
Product Parameters
Model
6090J

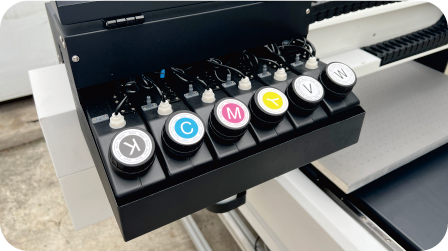

Ink Cartridge Type
Intelligent induction ink shortage alarm cartridge
Maximum Print Size
600 x 900mm
White Ink Stirring Function
Yes
Print head
XP600 / TX800 / i1600 / i3200
Rotary Shaft Device
Optional
Print head quantity
2-4
Platform Suction
Yes
Printing Accuracy
720dpi / 1080dpi / 1440dpi / 2160dpi / 3200dpi
Print Interface
Gigabit Network
Print head Cleaning
Automatic
Working Environment
Temperature 20 – 30C
Type of Ink
UV Ink
Software
Riprint / MainTop / Photo Print
Platform Height Adjustable
0-180mm
Operating System
Win7 / Win10 / Win11
Print Material
Acrylic, glass, Stainless steel, mobile phone case, ceramic tile, KT board, wood board, aluminum-plastic board
Rated Power
500W
Machine Size / Weight
1562 x 1530 x 666mm / 185kg
Packaging Size / Weight
1660 x 1660 x 890mm / 275kg
Speed / Accuracy
XP600-3
6pass 5m^2/h
8pass 3.5m^2/h
12pass 1.5m^2/h
TX800-3
6pass 5m^2/h
8pass 3.5m^2/h
12pass 1.5m^2/h
i1600-3
6pass 5m^2/h
8pass 3.5m^2/h
12pass 1.5m^2/h
i3200-3
6pass 8m^2/h
8pass 5m^2/h
12pass 3m^2/h
